第三代
半导体测试家族
Third generation semiconductor testing family
分类

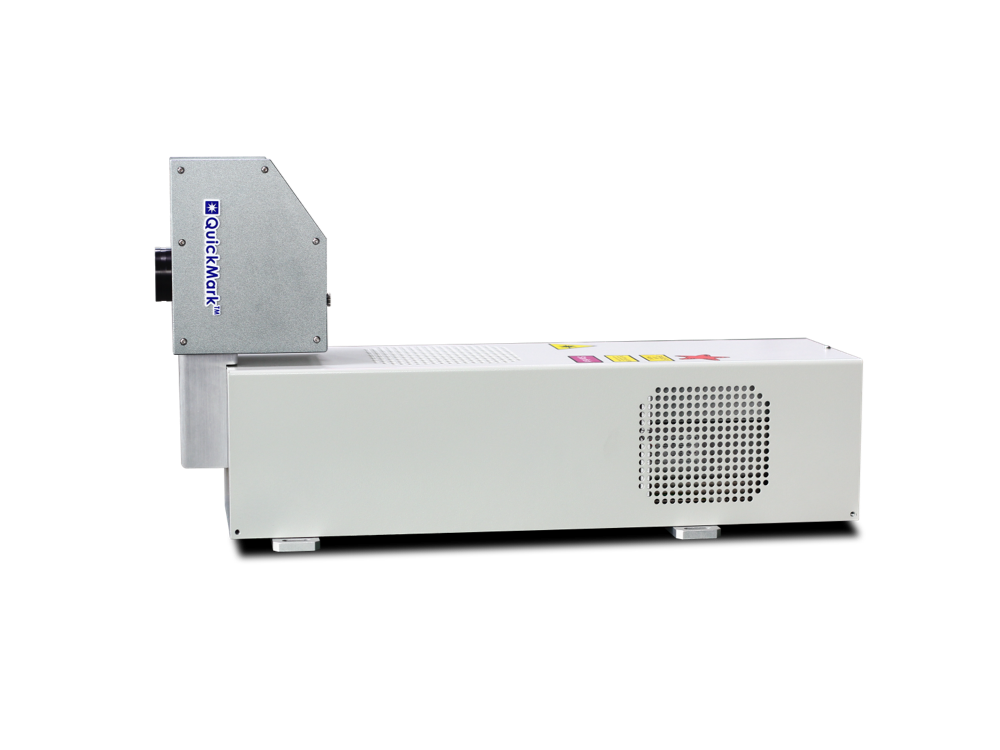

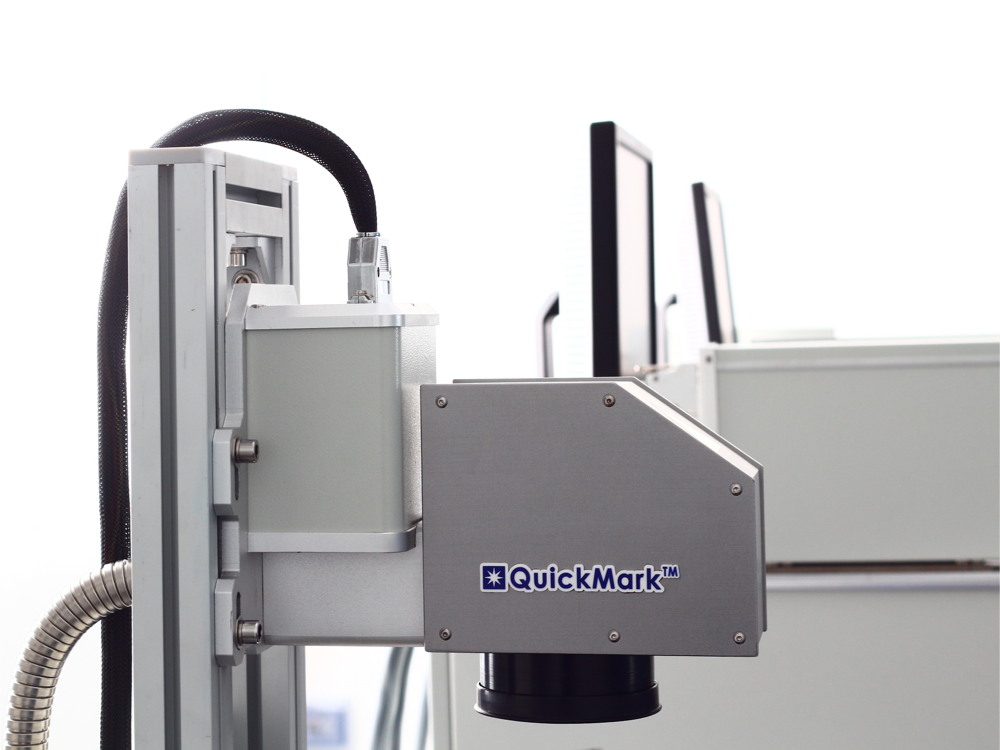

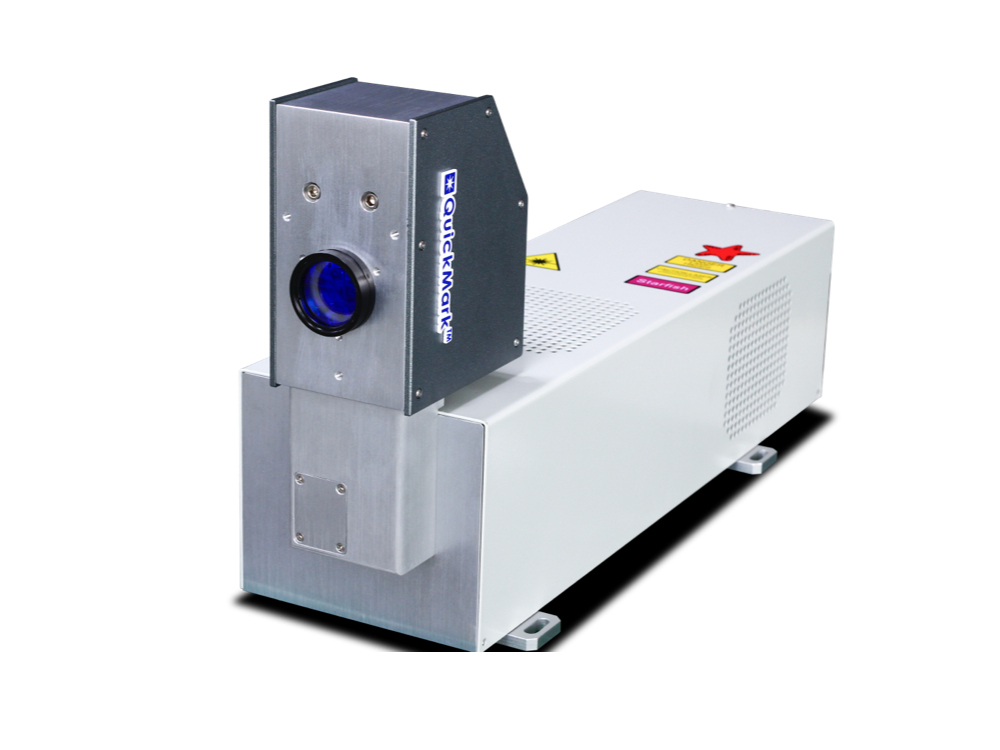

10W/20W/30W pulse laser marking machine
With high-speed turret type Handler, it is suitable for QFN, SM, SOT, SOD series devices and metal package devices.
|
Suspended power supply |
Multiple sites in parallel |
Multi-channel high precision |
Supports multiple extensions |
| Type | 10W/20W/30W Pulse laser marking machine |
| Advantages |
The integrated machine has compact structure, small size, strong anti-interference, high stability and long life. The software control system and mechanical working system are independently developed to ensure the stability and compatibility of the entire system and facilitate customer upgrades. |
| Main Features |
? Laser center wavelength：1064nm ? Laser output power：5、10、20W ? Marking range: 50X50mm, 70X70mm, 100X100mm, etc. optional ? Minimum printing line width：0.018mm ? Minimum font height：0.12mm ? laser frequency：20~80KHz ? Input power220V±10%/50Hz ? Applicable packaged devices: various semiconductor discrete devices, IC and metal packaged devices |
